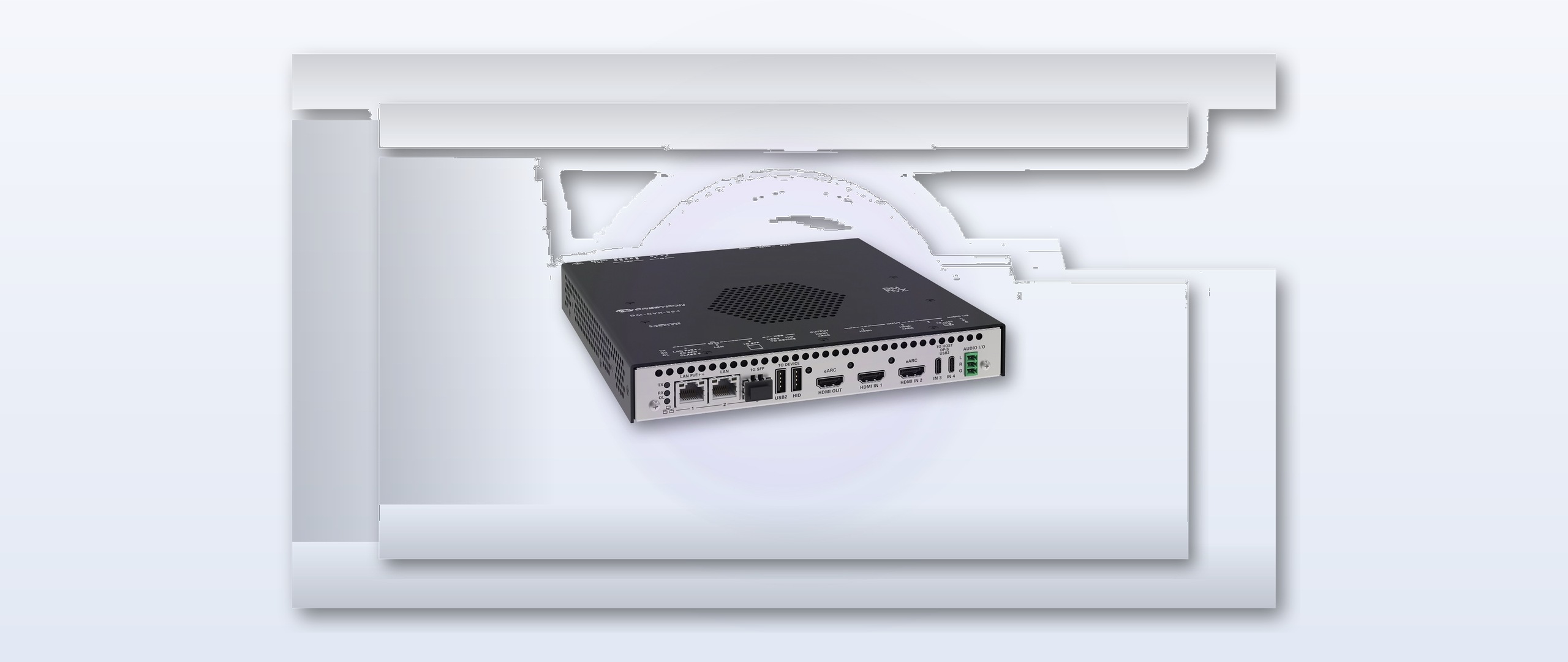

LED video walls built from non-standard panels continue to appear in retail, corporate lobbies and broadcast sets where manufacturers ship custom pixel pitches or refresh rates that break conventional scaling boxes. The Datapath Fx4 has emerged as the controller many fixed-install teams reach for first because its four DisplayPort or HDMI outputs can be programmed to match almost any timing an LED module requests.
Most LED cabinets in this category list horizontal and vertical totals that sit outside the CTA-861 tables. Attempting to drive them from a matrix switcher or media server often forces the source into an unsupported mode, resulting in dropped frames or color shifts. The Fx4 accepts an incoming 4K signal and splits it across four outputs while allowing independent adjustment of each output’s active area, front porch, sync width and pixel clock. Installers load the required timing via the WallControl software rather than relying on the panel’s own scaler.
Economics on these jobs hinge on labor hours more than hardware cost. A typical 3-by-3-meter wall using 1.8 mm pitch cabinets with 120 Hz refresh and non-standard blanking can take two technicians a full day to lock if each cabinet must be addressed individually. Teams using the Fx4 report bringing the same wall online in under four hours once the timing file is saved and reused across multiple sites. The controller itself lists at roughly $2,800, a figure that disappears inside the first avoided callback.
Configuration Steps and Cabling Choices
Workflow starts with capturing the panel’s native timing through a laptop connected directly to one cabinet. The resulting values are entered into the Fx4 output editor and stored as a preset. Because the unit supports both genlock and frame-lock across its outputs, multiple Fx4 controllers can be chained when the wall exceeds twelve outputs without introducing visible tearing. Cabling remains straightforward: a single 10 Gb fiber or Cat6A run carries the source to the primary controller, after which short DisplayPort or HDMI tails feed each cabinet row. This topology removes the need for a separate fiber transmitter at every cabinet, reducing both parts count and points of failure.
Power sequencing also changes. Earlier LED controllers often required the source to be live before the cabinets powered up, or the timing would drift. The Fx4 maintains its output clocks even when the input is removed, so technicians can bring cabinets online in any order without re-negotiation. That detail matters on sites where the electrical contractor finishes later than the AV crew.
Forward-looking integrators are already testing the Fx4 with the next generation of 0.9 mm pitch modules that push pixel clocks above 600 MHz. Early field data indicates the controller’s internal timing engine stays within spec up to 660 MHz, giving headroom for the 8K source resolutions expected once content servers catch up. As LED manufacturers continue to release panels outside published standards, the ability to treat timing as a configurable parameter rather than a fixed limitation is likely to keep the Fx4 in specification lists for at least the next two product cycles.
Another practical advantage appears when integrators must accommodate mixed LED batches on the same wall. Because each Fx4 output can be tuned independently, cabinets from two different production runs can be combined without forcing the entire array to the lowest common timing denominator. WallControl’s preset library lets technicians drag-and-drop previously saved timing files onto individual outputs, eliminating the need to recalculate front-porch or blanking values on site.
Network monitoring adds another layer of operational resilience. The controller exposes SNMP traps and a REST API so that building-management platforms can poll output status, pixel-clock stability and temperature in real time. When an LED cabinet begins to drop frames because its internal receiver drifts, the Fx4 can trigger an automatic failover to a backup timing preset or send an alert to the NOC before the fault becomes visible to the audience.
Training requirements remain minimal. Most technicians already familiar with LED wall processors need less than a day to master the Fx4 workflow, largely because the timing editor mirrors the same parameter names printed on cabinet data sheets. Datapath supplies a growing online library of verified timing files for common non-standard panels, further compressing commissioning time. As 0.7 mm pitch and direct-view micro-LED products reach the market with even higher pixel clocks and refresh demands, the same single-box approach is expected to scale without requiring new hardware generations.
